Regression Problems#
Regression is a type of supervised machine learning task where the goal is to predict a continuous numeric outcome (e.g., prices, height, temperature) based on given input features.
Examples of regression problems:
Predicting median house prices from property details.
Estimating a person’s salary from their years of education and experience.
Forecasting temperature or rainfall based on weather data.
Common regression algorithms include:#
Linear Regression: Simple and interpretable, assumes a linear relationship between inputs and outputs.
Polynomial Regression: Captures nonlinear relationships using polynomial features.
Neural Networks (Deep Learning): Capable of modeling complex relationships in data.
Decision Tree and Random Forest Regressors: Good for nonlinear data, robust to outliers.
Evaluating regression models:#
Common metrics to evaluate regression performance include:
Mean Absolute Error (MAE): Average absolute prediction error.
Mean Squared Error (MSE): Average squared prediction error (penalizes large errors heavily).
Root Mean Squared Error (RMSE): Square root of MSE, easily interpretable in original units.
R-squared (\(R^2\)): Indicates the proportion of variance in the target explained by the model.
In summary, regression involves predicting numeric values from input data and is fundamental for tasks requiring continuous outcomes.

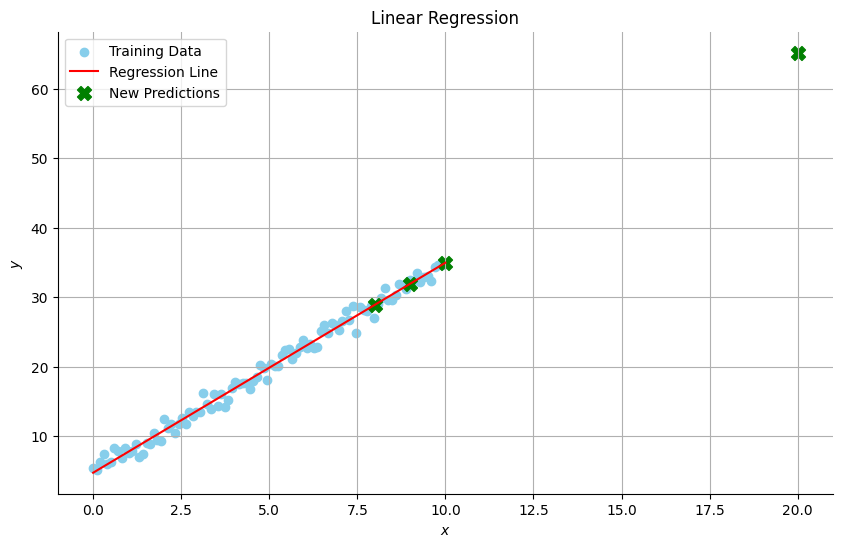

Example of a Linear Regression Problem#
Linear assumes that there is a linear relationship between the input features and the output variable.
import numpy as np
x = np.linspace(0, 10, 100)
print(x)
x_train = x.reshape(-1, 1)
print(x_train)
[ 0. 0.1010101 0.2020202 0.3030303 0.4040404 0.50505051
0.60606061 0.70707071 0.80808081 0.90909091 1.01010101 1.11111111
1.21212121 1.31313131 1.41414141 1.51515152 1.61616162 1.71717172
1.81818182 1.91919192 2.02020202 2.12121212 2.22222222 2.32323232
2.42424242 2.52525253 2.62626263 2.72727273 2.82828283 2.92929293
3.03030303 3.13131313 3.23232323 3.33333333 3.43434343 3.53535354
3.63636364 3.73737374 3.83838384 3.93939394 4.04040404 4.14141414
4.24242424 4.34343434 4.44444444 4.54545455 4.64646465 4.74747475
4.84848485 4.94949495 5.05050505 5.15151515 5.25252525 5.35353535
5.45454545 5.55555556 5.65656566 5.75757576 5.85858586 5.95959596
6.06060606 6.16161616 6.26262626 6.36363636 6.46464646 6.56565657
6.66666667 6.76767677 6.86868687 6.96969697 7.07070707 7.17171717
7.27272727 7.37373737 7.47474747 7.57575758 7.67676768 7.77777778
7.87878788 7.97979798 8.08080808 8.18181818 8.28282828 8.38383838
8.48484848 8.58585859 8.68686869 8.78787879 8.88888889 8.98989899
9.09090909 9.19191919 9.29292929 9.39393939 9.49494949 9.5959596
9.6969697 9.7979798 9.8989899 10. ]
[[ 0. ]
[ 0.1010101 ]
[ 0.2020202 ]
[ 0.3030303 ]
[ 0.4040404 ]
[ 0.50505051]
[ 0.60606061]
[ 0.70707071]
[ 0.80808081]
[ 0.90909091]
[ 1.01010101]
[ 1.11111111]
[ 1.21212121]
[ 1.31313131]
[ 1.41414141]
[ 1.51515152]
[ 1.61616162]
[ 1.71717172]
[ 1.81818182]
[ 1.91919192]
[ 2.02020202]
[ 2.12121212]
[ 2.22222222]
[ 2.32323232]
[ 2.42424242]
[ 2.52525253]
[ 2.62626263]
[ 2.72727273]
[ 2.82828283]
[ 2.92929293]
[ 3.03030303]
[ 3.13131313]
[ 3.23232323]
[ 3.33333333]
[ 3.43434343]
[ 3.53535354]
[ 3.63636364]
[ 3.73737374]
[ 3.83838384]
[ 3.93939394]
[ 4.04040404]
[ 4.14141414]
[ 4.24242424]
[ 4.34343434]
[ 4.44444444]
[ 4.54545455]
[ 4.64646465]
[ 4.74747475]
[ 4.84848485]
[ 4.94949495]
[ 5.05050505]
[ 5.15151515]
[ 5.25252525]
[ 5.35353535]
[ 5.45454545]
[ 5.55555556]
[ 5.65656566]
[ 5.75757576]
[ 5.85858586]
[ 5.95959596]
[ 6.06060606]
[ 6.16161616]
[ 6.26262626]
[ 6.36363636]
[ 6.46464646]
[ 6.56565657]
[ 6.66666667]
[ 6.76767677]
[ 6.86868687]
[ 6.96969697]
[ 7.07070707]
[ 7.17171717]
[ 7.27272727]
[ 7.37373737]
[ 7.47474747]
[ 7.57575758]
[ 7.67676768]
[ 7.77777778]
[ 7.87878788]
[ 7.97979798]
[ 8.08080808]
[ 8.18181818]
[ 8.28282828]
[ 8.38383838]
[ 8.48484848]
[ 8.58585859]
[ 8.68686869]
[ 8.78787879]
[ 8.88888889]
[ 8.98989899]
[ 9.09090909]
[ 9.19191919]
[ 9.29292929]
[ 9.39393939]
[ 9.49494949]
[ 9.5959596 ]
[ 9.6969697 ]
[ 9.7979798 ]
[ 9.8989899 ]
[10. ]]
import numpy as np
import matplotlib.pyplot as plt
from tensorflow import keras
from tensorflow.keras.layers import Dense, Input
import seaborn as sns
# Generate synthetic linear data
np.random.seed(42)
x = np.linspace(0, 10, 100)
y = 3 * x + 5 + np.random.randn(100)
# IMPORTANT: Reshape inputs for Keras
x_train = x.reshape(-1, 1)
# Define the linear model
model = keras.Sequential([
Input(shape=(1,)), # Input layer, each sample is a single value
Dense(1)
])
model.compile(optimizer=keras.optimizers.Adam(learning_rate=0.05), loss='mse', metrics=['mae'])
# Train longer to ensure convergence
history = model.fit(x_train, y, epochs=200, verbose=0)
# Predictions for the regression line
x_line = np.linspace(0, 10, 100)
y_line = model.predict(x_line.reshape(-1, 1))
# New predictions within training range
x_new = np.array([8, 9, 10, 20]).reshape(-1, 1)
y_new_pred = model.predict(x_new)
# Plotting clearly shows correct fitting
plt.figure(figsize=(10,6))
plt.scatter(x, y, label='Training Data', color='skyblue')
plt.plot(x_line, y_line, label='Regression Line', color='red')
plt.scatter(x_new, y_new_pred, label='New Predictions', color='green', s=100, marker='X')
plt.xlabel('$x$')
plt.ylabel('$y$')
plt.title('Linear Regression')
plt.legend()
plt.grid(True)
sns.despine()
plt.show()
2025-05-08 15:05:33.645054: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-05-08 15:05:33.648335: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-05-08 15:05:33.656823: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:467] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1746716733.670976 69455 cuda_dnn.cc:8579] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1746716733.675160 69455 cuda_blas.cc:1407] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
W0000 00:00:1746716733.686665 69455 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716733.686676 69455 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716733.686678 69455 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716733.686680 69455 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
2025-05-08 15:05:33.690494: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2025-05-08 15:05:35.831263: E external/local_xla/xla/stream_executor/cuda/cuda_platform.cc:51] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 20ms/step
4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 20ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 30ms/step
It is more common to use the LinearRegression class from the sklearn library to perform linear regression.
Key Differences:
No need to specify an input shape explicitly in
Scikit-learn(but you still reshape data).Scikit-learnuses a straightforward API for linear regression (LinearRegression()).Typically simpler and faster for small or straightforward regression tasks.
import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
# Generate synthetic linear data: y = 3x + 5 + noise
np.random.seed(42)
x = np.linspace(0, 10, 100)
y = 3 * x + 5 + np.random.randn(100)
# Reshape data for sklearn (critical step!)
x_train = x.reshape(-1, 1)
# Define and train linear regression model
model = LinearRegression()
model.fit(x_train, y, verbose=0)
# Generate predictions for regression line
y_line = model.predict(x_train)
# Make predictions on new data points
x_new = np.array([8, 9, 10, 11]).reshape(-1, 1)
y_new_pred = model.predict(x_new)
# Plot results clearly
plt.figure(figsize=(10,6))
plt.scatter(x, y, label='Training Data', color='skyblue')
plt.plot(x, y_line, label='Regression Line', color='red')
plt.scatter(x_new, y_new_pred, label='New Predictions', color='green', s=100, marker='X')
plt.xlabel('x')
plt.ylabel('y')
plt.title('Linear Regression with Scikit-learn')
plt.legend()
plt.grid(True)
sns.despine()
plt.show()
---------------------------------------------------------------------------
TypeError Traceback (most recent call last)
Cell In[3], line 15
13 # Define and train linear regression model
14 model = LinearRegression()
---> 15 model.fit(x_train, y, verbose=0)
17 # Generate predictions for regression line
18 y_line = model.predict(x_train)
File /opt/hostedtoolcache/Python/3.11.12/x64/lib/python3.11/site-packages/sklearn/base.py:1389, in _fit_context.<locals>.decorator.<locals>.wrapper(estimator, *args, **kwargs)
1382 estimator._validate_params()
1384 with config_context(
1385 skip_parameter_validation=(
1386 prefer_skip_nested_validation or global_skip_validation
1387 )
1388 ):
-> 1389 return fit_method(estimator, *args, **kwargs)
TypeError: LinearRegression.fit() got an unexpected keyword argument 'verbose'

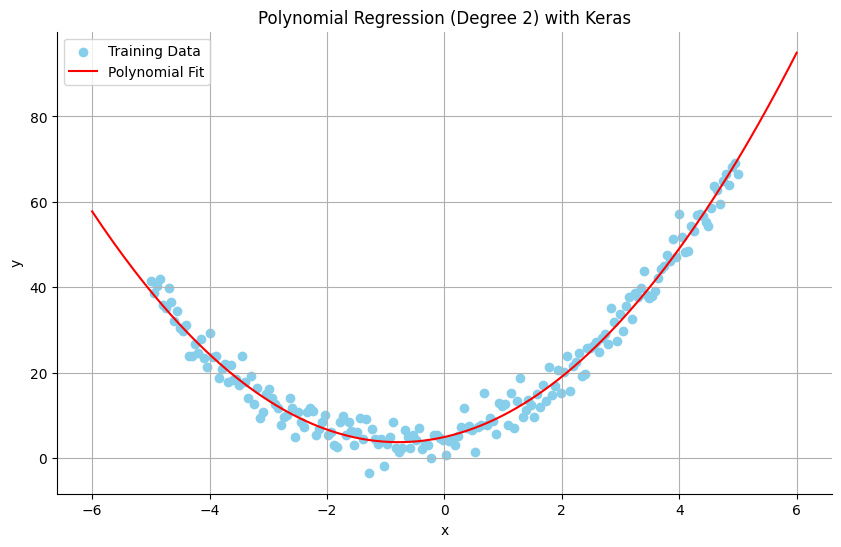

Polynomial Regression#
import numpy as np
import matplotlib.pyplot as plt
from tensorflow.keras import Sequential
from tensorflow.keras.layers import Dense, Input
# Generate synthetic polynomial data (quadratic)
np.random.seed(42)
x = np.linspace(-5, 5, 200)
y = 2 * x**2 + 3 * x + 5 + np.random.randn(200) * 3
# Important: explicitly generate polynomial features (x, x^2)
x_poly = np.column_stack((x, x**2))
# Define polynomial regression model in Keras
model = Sequential([
Input(shape=(2,)), # Two input features: x and x^2
Dense(1)
])
model.compile(optimizer=keras.optimizers.Adam(learning_rate=0.05), loss='mse', metrics=['mae'])
# Train longer to ensure convergence
history = model.fit(x_poly, y, epochs=200, verbose=0)
# Predict values using the trained model
x_new = np.linspace(-6, 6, 200)
x_new_poly = np.column_stack((x_new, x_new**2))
y_pred = model.predict(x_new_poly)
# Plot results clearly
plt.figure(figsize=(10, 6))
plt.scatter(x, y, label='Training Data', color='skyblue')
plt.plot(x_new, y_pred, label='Polynomial Fit', color='red')
plt.xlabel('x')
plt.ylabel('y')
plt.title('Polynomial Regression (Degree 2) with Keras')
plt.legend()
plt.grid(True)
sns.despine()
plt.show()
1/7 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/stepWARNING:tensorflow:5 out of the last 12 calls to <function TensorFlowTrainer.make_predict_function.<locals>.one_step_on_data_distributed at 0x2fa21e480> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has reduce_retracing=True option that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for more details.
7/7 ━━━━━━━━━━━━━━━━━━━━ 0s 3ms/step

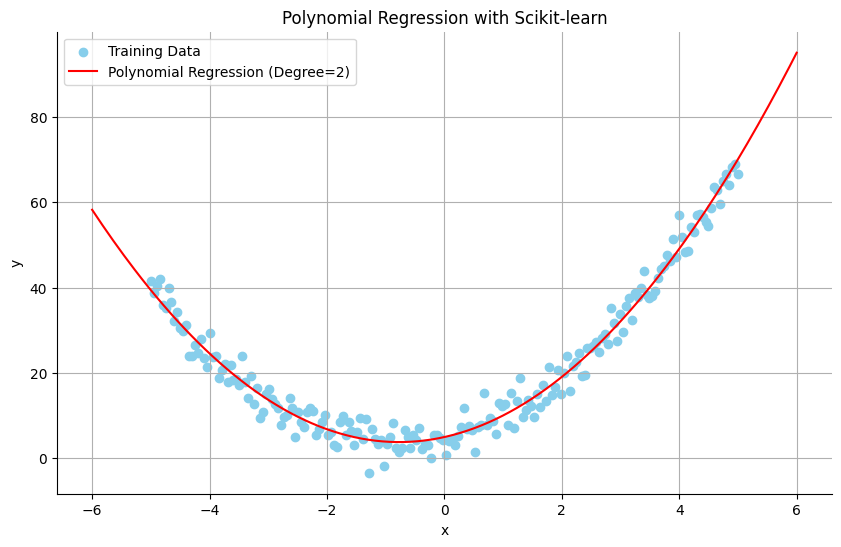

You can also use polynomial regression in Scikit-learn by transforming the input features into polynomial features using the PolynomialFeatures class.
import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
from sklearn.preprocessing import PolynomialFeatures
# Generate synthetic polynomial data (degree = 2)
np.random.seed(42)
x = np.linspace(-5, 5, 200)
y = 2 * x**2 + 3 * x + 5 + np.random.randn(200) * 3
# Reshape input data (important!)
x_train = x.reshape(-1, 1)
# Explicitly create polynomial features (degree = 2)
poly = PolynomialFeatures(degree=2)
x_poly = poly.fit_transform(x_train)
# Perform linear regression on the polynomial features
model = LinearRegression()
model.fit(x_poly, y)
# Predictions
x_new = np.linspace(-6, 6, 200).reshape(-1, 1)
x_new_poly = poly.transform(x_new)
y_pred = model.predict(x_new_poly)
# Plot clearly
plt.figure(figsize=(10, 6))
plt.scatter(x, y, label='Training Data', color='skyblue')
plt.plot(x_new, y_pred, label='Polynomial Regression (Degree=2)', color='red')
plt.xlabel('x')
plt.ylabel('y')
plt.title('Polynomial Regression with Scikit-learn')
plt.legend()
plt.grid(True)
sns.despine()
plt.show()
