Finding a Decision Boundary#
In this tutorial, we will learn how to find the decision boundary of a linear classifier. We will explore three different approaches:
Random Search - A simple baseline approach where we randomly generate weight vectors and choose the one with the best accuracy.
Perceptron Algorithm - A classic online learning method that iteratively updates weights based on misclassified points.
Support Vector Machines (SVMs) - A more advanced method that finds the optimal decision boundary by maximizing the margin between classes.
Each approach has different strengths and weaknesses, and by the end of this tutorial, you will understand the differences and advantages of each method.
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
Helper Functions#
Before we start, let’s define some helper functions that will be used throughout the tutorial.
Tip
You can skip this section on a first read.
# Set random seed for reproducibility
# np.random.seed(42)
def generate_labeled_data(class0_center, class1_center, num_points=1000):
"""
Generate labeled data for a binary classification problem.
Parameters
----------
class0_center : list
The center of the points for class 0.
class1_center : list
The center of the points for class 1.
num_points : int
The total number of points to generate.
Returns
-------
X : ndarray
The feature matrix of shape (num_points, 2).
y : ndarray
The labels of shape (num_points), where each label is either 0 or 1.
"""
class0_center = np.array(class0_center)
class1_center = np.array(class1_center)
# Generate points for Class 0 and Class 1
class0 = np.random.randn(num_points // 2, 2) + class0_center
class1 = np.random.randn(num_points // 2, 2) + class1_center
# Combine into one dataset
X = np.vstack([class0, class1])
y = np.array([0] * (num_points // 2) + [1] * (num_points // 2)) # Labels: 0 and 1
# Shuffle dataset
indices = np.random.permutation(num_points)
X = X[indices]
y = y[indices]
return X, y
num_points = 1000
X, y = generate_labeled_data(
class0_center=[0, 0],
class1_center=[2, 2],
num_points=num_points)
# Split data into training and testing sets
split_idx = int(0.8 * num_points)
X_train, X_test = X[:split_idx], X[split_idx:]
y_train, y_test = y[:split_idx], y[split_idx:]

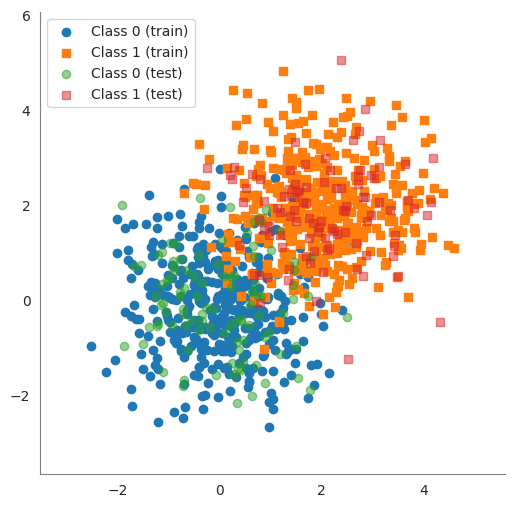

# Plot the data
sns.set_style(style='white')
plt.figure(figsize=(6, 6))
plt.scatter(X_train[y_train == 0][:, 0], X_train[y_train == 0][:, 1], marker='o', label='Class 0 (train)')
plt.scatter(X_train[y_train == 1][:, 0], X_train[y_train == 1][:, 1], marker='s', label='Class 1 (train)')
plt.scatter(X_test[y_test == 0][:, 0], X_test[y_test == 0][:, 1], marker='o', alpha=0.5, label='Class 0 (test)')
plt.scatter(X_test[y_test == 1][:, 0], X_test[y_test == 1][:, 1], marker='s', alpha=0.5, label='Class 1 (test)')
plt.ylim(X[:, 1].min() - 1, X[:, 1].max() + 1)
plt.xlim(X[:, 0].min() - 1, X[:, 0].max() + 1)
sns.despine()
plt.gca().spines['left'].set_color('gray')
plt.gca().spines['bottom'].set_color('gray')
plt.legend()
plt.show()
def plot_with_boundary(X, y, weights, b):
"""
Plot the decision boundary of a binary classifier along with the data.
Parameters
----------
X : ndarray
The feature matrix of shape (num_points, 2).
y : ndarray
The labels of shape (num_points), where each label is either 0 or 1.
weights : list or numpy.array of length 2
The weights of the decision boundary.
b : float
The bias term of the decision boundary.
"""
w1, w2 = weights
X = X.copy()
y = y.copy()
class0 = X[y == 0]
class1 = X[y == 1]
x_vals = np.linspace(X[:, 0].min() - 1, X[:, 0].max() + 1, 100)
if abs(w2) < 1e-6:
y_vals = np.full_like(x_vals, -b) # Vertical line at -b
else:
y_vals = -(w1 / w2) * x_vals - (b / w2)
# Compute predictions
predictions = np.sign(w1 * X[:, 0] + w2 * X[:, 1] + b)
y[y == 0] = -1
misclassified = predictions != y
accuracy = np.mean(predictions == y)
sns.set_style('white')
plt.figure(figsize=(6, 6))
plt.scatter(class0[:, 0], class0[:, 1], marker='o', label='Class 0')
plt.scatter(class1[:, 0], class1[:, 1], marker='s', label='Class 1')
plt.scatter(X[misclassified, 0], X[misclassified, 1],
color='black', marker='x', s=100, label="Misclassified") # Fix warning
plt.plot(x_vals, y_vals, 'g--', linewidth=2) # Green dashed line for boundary
# Compute midpoint of the decision boundary for normal vector placement
mid_x = (X[:, 0].min() + X[:, 0].max()) / 2
mid_y = -(w1 / w2) * mid_x - (b / w2) if abs(w2) > 1e-6 else -b
# Normalize normal vector to a fixed length
normal_length = 1.0
norm = np.sqrt(w1**2 + w2**2)
if norm > 0:
unit_w1, unit_w2 = (w1 / norm) * normal_length, (w2 / norm) * normal_length
plt.arrow(mid_x, mid_y, unit_w1, unit_w2, color='purple', head_width=0.2, head_length=0.2, label="Normal Vector")
plt.ylim(X[:, 1].min() - 1, X[:, 1].max() + 1)
plt.xlim(X[:, 0].min() - 1, X[:, 0].max() + 1)
sns.despine()
plt.gca().spines['left'].set_color('gray')
plt.gca().spines['bottom'].set_color('gray')
plt.title(f"Decision Boundary: ${w1:.2f}*x_1 + {w2:.2f}*x_2 + {b:.2f} = 0$\nAccuracy: {accuracy:.2%}\n")
# don't show the line for the normal vector
handles, labels = plt.gca().get_legend_handles_labels()
plt.legend(
handles=handles[:-1],
labels=labels[:-1],
loc='center left',
bbox_to_anchor=(1, 0.5))
plt.show()
def project_point_onto_boundary(point, w, b):
"""
Compute the perpendicular projection of a point onto the decision boundary.
"""
norm_w = w / np.linalg.norm(w)
distance = (np.dot(point, w) + b) / np.linalg.norm(w)
projection = point - distance * norm_w
return projection
# Function to plot dataset and decision boundary with margins
def plot_with_boundary_and_margin(X, y, weights, b):
"""
Plot the decision boundary of a binary classifier along with the data and margins, and include the margin distance of each point.
"""
# Function to calculate the margin (distance) of each data point to the decision boundary
def calculate_margin(X, w, b):
return np.abs(X.dot(w) + b) / np.linalg.norm(w)
X = X.copy()
y = y.copy()
w1, w2 = weights
class0 = X[y == 0]
class1 = X[y == 1]
x_vals = np.linspace(X[:, 0].min() - 1, X[:, 0].max() + 1, 100)
if abs(w2) < 1e-6:
y_vals = np.full_like(x_vals, -b) # Vertical line at -b
else:
y_vals = -(w1 / w2) * x_vals - (b / w2)
# Compute predictions
predictions = np.sign(w1 * X[:, 0] + w2 * X[:, 1] + b)
y[y == 0] = -1
misclassified = predictions != y
accuracy = np.mean(predictions == y)
sns.set_style('white')
plt.figure(figsize=(6, 6))
plt.scatter(class0[:, 0], class0[:, 1], marker='o', label='Class 0')
plt.scatter(class1[:, 0], class1[:, 1], marker='s', label='Class 1')
plt.scatter(X[misclassified, 0], X[misclassified, 1],
color='black', marker='x', s=100, label="Misclassified")
plt.plot(x_vals, y_vals, 'g--', linewidth=2) # Green dashed line for boundary
# Compute margin lines
margins = calculate_margin(X, np.array([w1, w2]), b)
margin_lines = [(X[i], project_point_onto_boundary(X[i], np.array([w1, w2]), b)) for i in range(len(X))]
for i, (point, proj) in enumerate(margin_lines):
plt.plot([point[0], proj[0]], [point[1], proj[1]], 'orange', linestyle='dotted', alpha=0.7)
plt.text(point[0], point[1], f'{margins[i]:.2f}', fontsize=9, verticalalignment='bottom', horizontalalignment='right', color='black')
# Compute midpoint of the decision boundary for normal vector placement
mid_x = (X[:, 0].min() + X[:, 0].max()) / 2
mid_y = -(w1 / w2) * mid_x - (b / w2) if abs(w2) > 1e-6 else -b
# Normalize normal vector to a fixed length
normal_length = 1.0
norm = np.sqrt(w1**2 + w2**2)
if norm > 0:
unit_w1, unit_w2 = (w1 / norm) * normal_length, (w2 / norm) * normal_length
plt.arrow(mid_x, mid_y, unit_w1, unit_w2, color='purple', head_width=0.2, head_length=0.2, label="Normal Vector")
plt.ylim(X[:, 1].min() - 1, X[:, 1].max() + 1)
plt.xlim(X[:, 0].min() - 1, X[:, 0].max() + 1)
sns.despine()
plt.gca().spines['left'].set_color('gray')
plt.gca().spines['bottom'].set_color('gray')
plt.title(f"Decision Boundary: ${w1:.2f}*x_1 + {w2:.2f}*x_2 + {b:.2f} = 0$\n Accuracy: {accuracy:.2%}")
handles, labels = plt.gca().get_legend_handles_labels()
plt.legend(
handles=handles[:-1],
labels=labels[:-1],
loc='center left',
bbox_to_anchor=(1, 0.5))
plt.show()
Random Search: A Baseline Approach#
The simplest way to find a decision boundary is through random search. In this approach, we randomly generate weight vectors and biases multiple times and select the one that yields the highest accuracy on the training data.
This method is inefficient and does not guarantee an optimal solution, but it serves as a useful baseline to compare against more sophisticated learning algorithms. By understanding its limitations, we can better appreciate the advantages of other algorithms.
X = np.array([[0, -0.5], [-1, 10], [1, 2]])
w = np.array([1, 0.5])
np.dot(X, w)
array([-0.25, 4. , 2. ])
def evaluate_accuracy(y_true, y_pred):
"""
Computes the classification accuracy, which is the proportion of
correctly predicted labels.
"""
return np.mean(y_true == y_pred)
def train_random_search(X_train, y_train, num_trials=1000):
"""
Performs random search to find a linear decision boundary.
The function generates random weight vectors and biases, evaluates accuracy, and selects the best-performing model.
"""
best_w, best_b = None, None
best_accuracy = 0 # Start with the lowest possible accuracy
for _ in range(num_trials):
w = np.random.randn(2) # Random weight vector
b = np.random.randn() # Random bias
scores = X_train.dot(w) + b
y_pred = (scores >= 0).astype(int)
accuracy = np.mean(y_train == y_pred)
if accuracy > best_accuracy:
best_accuracy = accuracy
best_w = w
best_b = b
def model(X_new):
scores = X_new.dot(best_w) + best_b
return (scores >= 0).astype(int)
return model, best_w, best_b, best_accuracy
num_points = 1000
X, y = generate_labeled_data(
class0_center=[-1, -1],
class1_center=[1, 1],
num_points=num_points)
# Split data into training and testing sets
split_idx = int(0.8 * num_points)
X_train, X_test = X[:split_idx], X[split_idx:]
y_train, y_test = y[:split_idx], y[split_idx:]
# Train the random search model
random_model, best_w, best_b, best_accuracy = train_random_search(X_train, y_train, num_trials = 10000)
print(f"Best weights: {best_w},\nBest bias: {best_b},\nBest accuracy: {best_accuracy}")
# Evaluate the model on the test set
y_pred = random_model(X_test)
test_accuracy = evaluate_accuracy(y_test, y_pred)
print(f"Test accuracy: {test_accuracy}")
# concatenate X_train and X_test and the labels
X = np.concatenate((X_train, X_test), axis=0)
y = np.concatenate((y_train, y_test), axis=0)

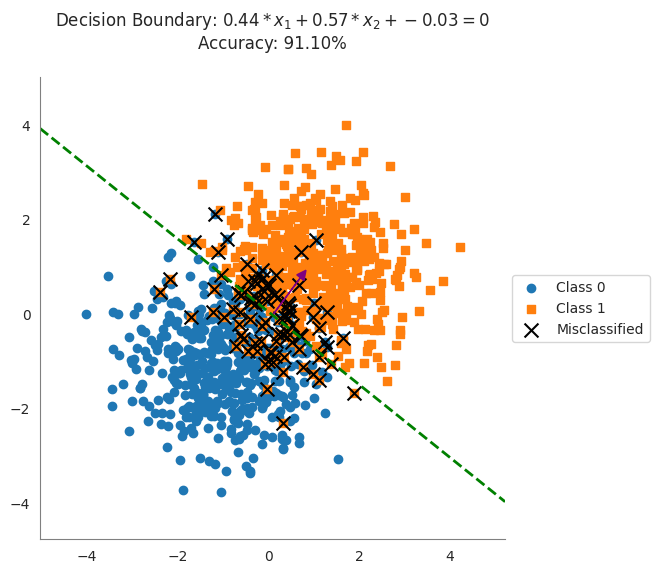

plot_with_boundary(X, y, best_w, best_b)
Best weights: [0.44263279 0.57296199],
Best bias: -0.025975382176417545,
Best accuracy: 0.905
Test accuracy: 0.935
A key limitation of the random search approach is that it requires a large number of random samples to find a good solution. Even then, it may not identify the optimal decision boundary.
To illustrate this, consider a simple example where two classes are linearly separable. Ideally, a perfect classifier should achieve 100% accuracy. However, since random search relies on trial and error, it may fail to find this optimal boundary, even with a large number of trials.
X1 = np.array([
[-1, -1], [-2, -1.5], [-1.5, -2], [-0.75, -2.5], [-3, -1.5], # Class 0
[1, 1], [2.25, 1.5], [1.5, 2], [0.5, 2.5], [1.8, 1.5] # Class 1
])
y1 = np.array([0, 0, 0, 0, 0, 1, 1, 1, 1, 1]) # Labels
random_model, best_w, best_b, best_accuracy = train_random_search(X1, y1, num_trials=5)
plot_with_boundary(X1, y1, best_w, best_b)
Perceptron Algorithm#
While random search provides a basic way to find a decision boundary, it does not learn from the data. The Perceptron Algorithm, introduced by Frank Rosenblatt in 1958, is one of the earliest learning algorithms that iteratively improves its decision boundary.
Unlike random search, the Perceptron algorithm adjusts its weights systematically. It starts with random weights and updates them each time a misclassified point is encountered. This process continues until all points are correctly classified (if the data is linearly separable).
The key idea behind the Perceptron is simple:
If a point is correctly classified, do nothing.
If a point is misclassified, adjust the weight vector to move the boundary in the right direction.
The Perceptron algorithm is guaranteed to converge if the data is linearly separable. However, if the data is not linearly separable, the algorithm will not converge, and the weights will continue to update indefinitely.
def train_perceptron(X, y, max_iters=1000):
"""
Use the perceptron algorithm to find a linear decision boundary.
"""
w = np.zeros(X.shape[1]) # Initialize weight vector
b = 0 # Initialize bias
y = np.where(y == 0, -1, 1) # Convert labels to {-1, 1}
for _ in range(max_iters):
misclassified = False
for i in range(len(X)):
if y[i] * (np.dot(w, X[i]) + b) <= 0: # Misclassification check
w += y[i] * X[i] # Update weights
b += y[i] # Update bias
misclassified = True
if not misclassified: # Stop if no misclassifications
break
def model(X_new):
scores = X_new.dot(w) + b
return (scores >= 0).astype(int)
return model, w, b
num_points = 1000
X, y = generate_labeled_data(
class0_center=[-2, -2],
class1_center=[2, 2],
num_points=num_points)
# Split data into training and testing sets
split_idx = int(0.8 * num_points)
X_train, X_test = X[:split_idx], X[split_idx:]
y_train, y_test = y[:split_idx], y[split_idx:]
# Train the random search model
perceptron_model, best_w, best_b = train_perceptron(X_train, y_train)
print(f"Perceptron weights: {best_w},\nPerceptron bias: {best_b}")
# Evaluate the model on the test set
y_pred = random_model(X_test)
test_accuracy = evaluate_accuracy(y_test, y_pred)
print(f"Test accuracy: {test_accuracy}")
# concatenate X_train and X_test and the labels
X = np.concatenate((X_train, X_test), axis=0)
y = np.concatenate((y_train, y_test), axis=0)

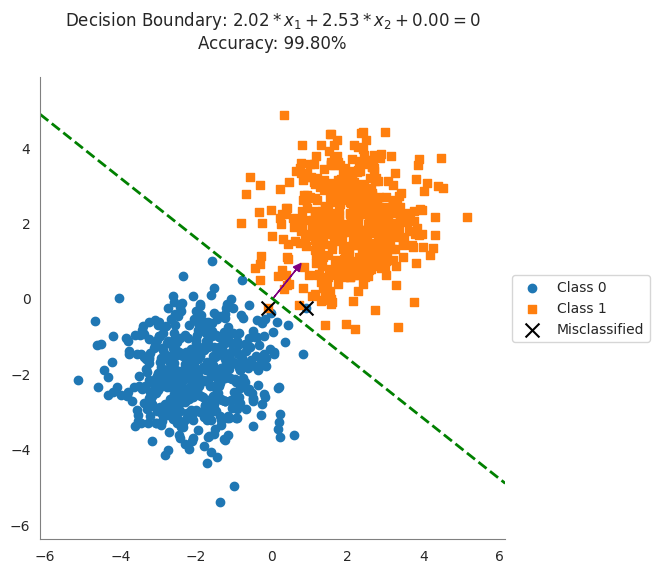

plot_with_boundary(X, y, best_w, best_b)
Perceptron weights: [2.01844911 2.53280517],
Perceptron bias: 0
Test accuracy: 0.985
Comparing Decision Boundaries#
One of the key limitations of the Perceptron algorithm is that it only ensures points are classified correctly—it does not consider how confidently they are classified. In other words, while it finds a separating boundary, it does not maximize the distance between the closest data points and the decision boundary.
To illustrate this, consider a simple example where two classes are linearly separable. There are multiple decision boundaries that correctly classify all points, but not all boundaries are equally desirable. One of them—represented by the blue line—is preferable because it is more robust and generalizable to new data.
X1 = np.array([
[-1, -1], [-2, -1.5], [-1.5, -2], [-0.75, -2.5], [-3, -1.5], # Class 0
[1, 1], [2.25, 1.5], [1.5, 2], [0.5, 2.5], [1.8, 1.5] # Class 1
])
y1 = np.array([0, 0, 0, 0, 0, 1, 1, 1, 1, 1]) # Labels
sns.set_style('white')
plt.figure(figsize=(6, 6))
plt.scatter(X1[y1 == 0][:, 0], X1[y1 == 0][:, 1], marker='o', label='Class 0 (train)')
plt.scatter(X1[y1 == 1][:, 0], X1[y1 == 1][:, 1], marker='s', label='Class 1 (train)')
plt.ylim(X1[:, 1].min() - 1, X1[:, 1].max() + 1)
plt.xlim(X1[:, 0].min() - 1, X1[:, 0].max() + 1)
boundaries = [
{'w': np.array([0.25, 0.25]), 'b': 0.35},
{'w': np.array([1, 1]), 'b': -1.35},
{'w': np.array([0.25, 1.0]), 'b': 1},
{'w': np.array([0.25, 1.0]), 'b': -1},
]
boundary_colors = ['red', 'green', 'gray', 'purple']
x_vals = np.linspace(X1[:, 0].min() - 1, X1[:, 0].max() + 1, 100)
for bidx, boundary in enumerate(boundaries):
w, b = boundary['w'], boundary['b']
y_vals = -(w[0] / w[1]) * x_vals - (b / w[1])
plt.plot(x_vals, y_vals, linestyle='--', color=boundary_colors[bidx], lw=0.75, label=f'Boundary: w={w}, b={b:.2f}')
w, b = np.array([0.5, 0.5]),0.0
y_vals = -(w[0] / w[1]) * x_vals - (b / w[1])
plt.plot(x_vals, y_vals, linestyle='--', color="blue", lw=2, label=f'Boundary: w={w}, b={b:.2f}')
sns.despine()
plt.gca().spines['left'].set_color('gray')
plt.gca().spines['bottom'].set_color('gray')
plt.legend(loc='upper left', bbox_to_anchor=(1, 1), frameon=False)
plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.title("Comparison of Different Decision Boundaries")

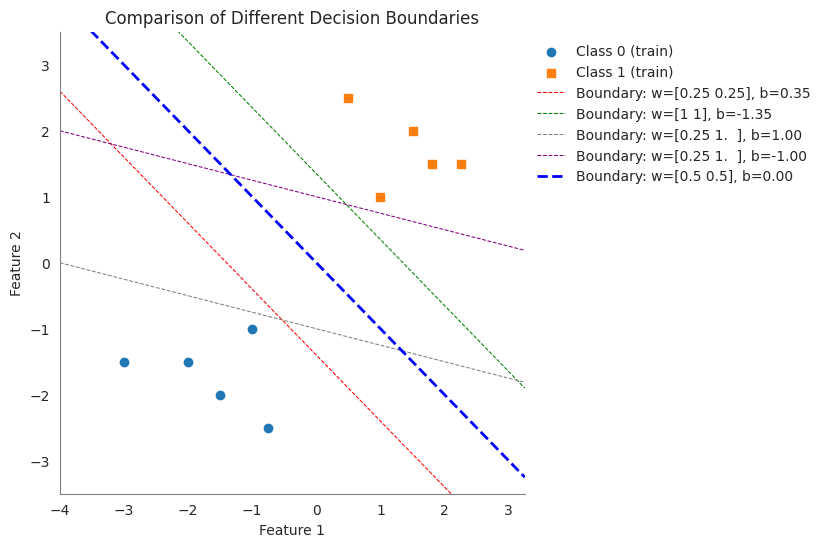

plt.show();
In classification problems, the margin measures how far a given data point is from the decision boundary. More precisely, it is the shortest distance from the data point to the boundary that separates different classes.
If the margin is large, the classification is considered more confident and stable.
If the margin is small, the point is close to the decision boundary and may be more likely to be misclassified.
The margin is always measured perpendicularly to the decision boundary, as this is the shortest possible distance.
The graph below shows the margin for each data point for the decision boundary generated by the perceptron algorithm. The margin is the distance from the decision boundary to the closest point in each class.
Calculating the Margin#
Suppose that the decision boundary defined by the equation:
where \(w\) is the weight vector, \(b\) is the bias term, and \(x\) is a feature vector.
The margin \(d\) of a data point \(x_0\) is given by:
where \(||w||\) is the Euclidean norm of the weight vector \(w\).
The function to calculate the margin for a set of data points is implemented below:
def calculate_margin(X, w, b):
"""
Compute the margin (distance) of each data point to the decision boundary given by w and b.
"""
return np.abs(X.dot(w) + b) / np.linalg.norm(w)
Step 1: Find the Projection of the Data Point onto the Normal Vector The first step in computing the margin is to find the point along the normal vector that is closest to the given data point \(x_0\). This point is called the projection of \(x_0\) onto the normal vector \(w\). That is, we must find \(\lambda\) such that the vector from \(x_0\) to the projection point (\(\lambda w\)) is perpendicular to \(w\):
Distributing the dot product gives:
Moving terms around, we find:
Solving for \(\lambda\) gives:
Thus, the projection point onto the normal vector is:
Step 2: Compute the Perpendicular Distance to the Decision Boundary The next step is to compute the distance from the decision boundary to the projection point. Since the margin is the shortest distance, this is simply the Euclidean norm of the projection vector:
Using the property that scaling a vector scales its norm:
Since \(w \cdot w = ||w||^2\), we simplify:
Thus, the final margin formula is:
To illustrate, consider the following example where the weight vector is \(w = [0.5, 0.5]\) and the bias term is \(b = 0\). The margin for the data point \(x_0 = [1.5, 2]\) is calculated as follows:

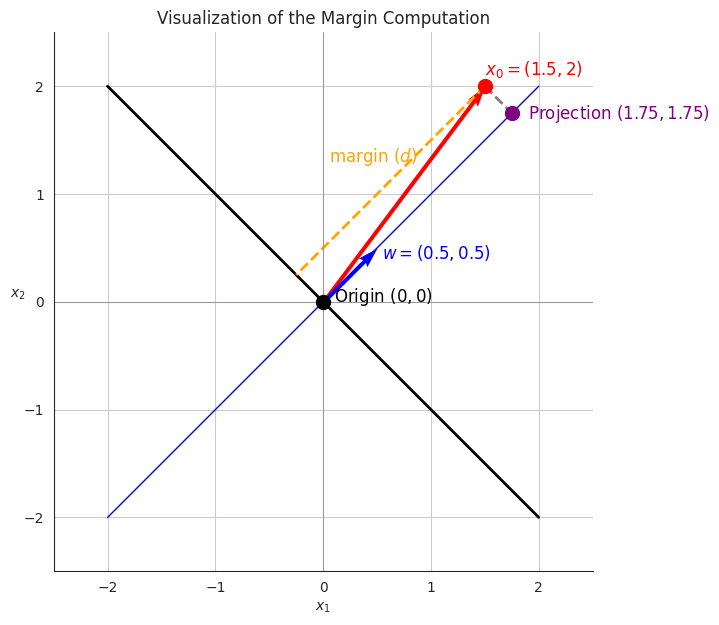

The margin, represented by the length of the dashed orange line in the graph below, is approximately \(2.47\). The projection point, which is the closest point to \(x_0\) along the normal vector, is indicated by the purple dot.
import numpy as np
import matplotlib.pyplot as plt
# Define normal vector w and data point x_0
w = np.array([0.5, 0.5]) # Normal vector
point = np.array([1.5, 2]) # Data point
print(f"\nThe margin of {point} with weight {w} and bias 0 is {calculate_margin(point, w, 0)}\n")
# Compute projection onto w
dot_product_x0_w = np.dot(point, w)
dot_product_w_w = np.dot(w, w)
projection_scalar = dot_product_x0_w / dot_product_w_w
projection_calculated = projection_scalar * w
# Compute projection onto the decision boundary (where the margin meets the boundary)
b = 0 # Assume the decision boundary is w ⋅ x = 0 (passes through the origin)
projection_boundary = point - ((np.dot(point, w) + b) / np.dot(w, w)) * w # Correct margin projection
# Define the decision boundary equation: x2 = -x1
x1_vals = np.linspace(-2, 2, 100)
x2_vals = -x1_vals # Decision boundary
# Create visualization
fig, ax = plt.subplots(figsize=(7, 7))
# Plot decision boundary (black line)
ax.plot(x1_vals, x2_vals, 'k-', linewidth=2, label="Decision Boundary")
# Blue normal vector (extends beyond the projection point)
extended_w_start = np.array([-2, -2])
extended_w_end = np.array([2, 2])
ax.plot([extended_w_start[0], extended_w_end[0]], [extended_w_start[1], extended_w_end[1]], 'b-', linewidth=1, label="Normal Vector (w)")
# Red arrow pointing to data point
ax.quiver(0, 0, point[0], point[1], angles='xy', scale_units='xy', scale=1, color='red', label="Data Point $x_0 = (1.5,2)$")
# Corrected perpendicular margin line (orange dashed line from data point to decision boundary)
ax.plot([point[0], projection_boundary[0]], [point[1], projection_boundary[1]], linestyle='dashed', color='orange', linewidth=2, label="Margin (Perpendicular to Decision Boundary)")
# Perpendicular projection line from x_0 to the normal vector (gray dashed line)
ax.plot([point[0], projection_calculated[0]], [point[1], projection_calculated[1]], linestyle='dashed', color='gray', linewidth=2, label="Perpendicular to Normal Vector")
# Blue arrow representing the normal vector w at (0.5, 0.5)
ax.quiver(0, 0, w[0], w[1], angles='xy', scale_units='xy', scale=1, color='blue')
ax.text(0.55, 0.4, r"$w=(0.5, 0.5)$", fontsize=12, color='blue')
# Mark key points with labels
ax.text(1.5, 2.1, r"$x_0 = (1.5,2)$", fontsize=12, color='red')
ax.text(1.9, 1.7, r"Projection $(1.75, 1.75)$", fontsize=12, color='purple')
ax.text(0.1, 0, r"Origin $(0, 0)$", fontsize=12, color='black')
ax.text(0.05, 1.3, r"margin ($d$)", color='orange', fontsize=12)
# Plot key points
ax.scatter(point[0], point[1], color='red', s=100, zorder=3) # Data point
ax.scatter(projection_calculated[0], projection_calculated[1], color='purple', s=100, zorder=3) # Projection point
ax.scatter(0, 0, color='black', s=100, zorder=3) # Projection point
# Labels and legend
ax.set_xlabel("$x_1$")
ax.set_ylabel("$x_2$", rotation=0)
ax.set_xlim(-2.5, 2.5)
ax.set_ylim(-2.5, 2.5)
ax.axhline(0, color='gray', lw=0.5)
ax.axvline(0, color='gray', lw=0.5)
sns.despine()
#ax.legend(loc='upper right')
ax.set_title("Visualization of the Margin Computation")
# Enforce equal aspect ratio to maintain correct perpendicularity
ax.set_aspect('equal')
plt.grid()
plt.show()
The margin of [1.5 2. ] with weight [0.5 0.5] and bias 0 is 2.4748737341529163
An important observation is that the perceptron algorithm does not necessarily produce a decision boundary with the largest margin.
X1 = np.array([
[-1, -1], [-2, -1.5], [-1.5, -2], [-0.75, -2.5], [-3, -1.5], # Class 0
[1, 1], [2.25, 1.5], [1.5, 2], [0.5, 2.5], [1.8, 1.5] # Class 1
])
y1 = np.array([0, 0, 0, 0, 0, 1, 1, 1, 1, 1]) # Labels
model_perceptron, best_w_perceptron, best_b_perceptron = train_perceptron(X1, y1, max_iters=1000)
print(f"\nPerceptron weights: {best_w_perceptron},\nPerceptron bias: {best_b_perceptron}")

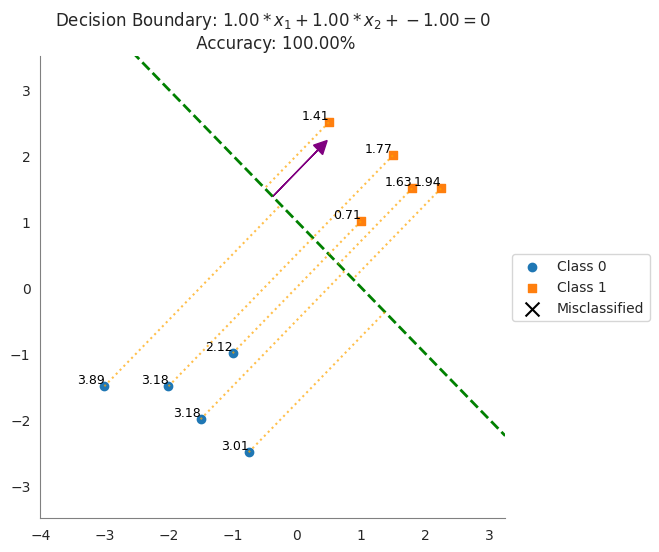

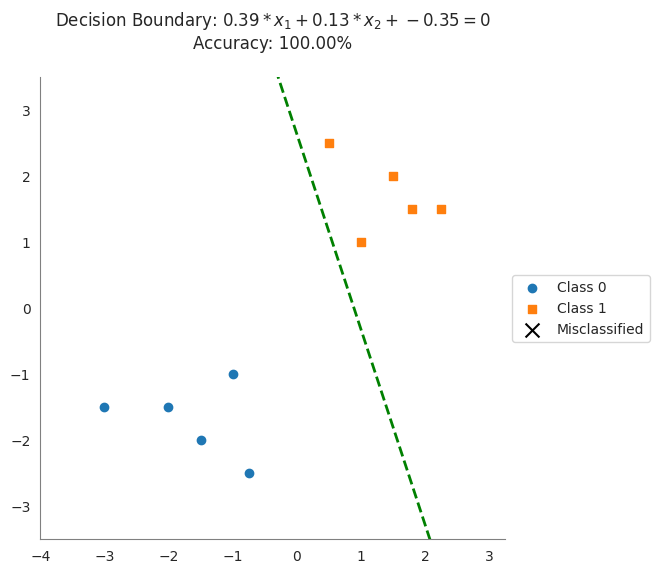

plot_with_boundary_and_margin(X1, y1, best_w_perceptron, best_b_perceptron)
Perceptron weights: [1. 1.],
Perceptron bias: -1
Support Vector Machines (SVMs)#
Support Vector Machines (SVMs) are an advanced method for determining an optimal decision boundary. Rather than just separating classes, an SVM maximizes the margin between them, which makes the classifier more robust and better at generalizing to new data. In this section, we will implement the SVM algorithm using the keras library.
Hinge Loss#
The SVM algorithm optimizes its decision boundary by minimizing the hinge loss function. Hinge loss penalizes predictions that are too close to—or on the wrong side of—the margin, encouraging the classifier to not only separate classes but also maximize the distance (margin) between them.
The hinge loss for a single data point is defined as:
where \(y\) is the true label, \(w\) is the weight vector, \(x\) is the feature vector, and \(b\) is the bias term. The hinge loss is zero when the point is correctly classified and on the correct side of the margin, and it increases linearly as the point moves closer to the decision boundary.
def hinge_loss_value(y, f):
return np.maximum(0, 1 - y * f)

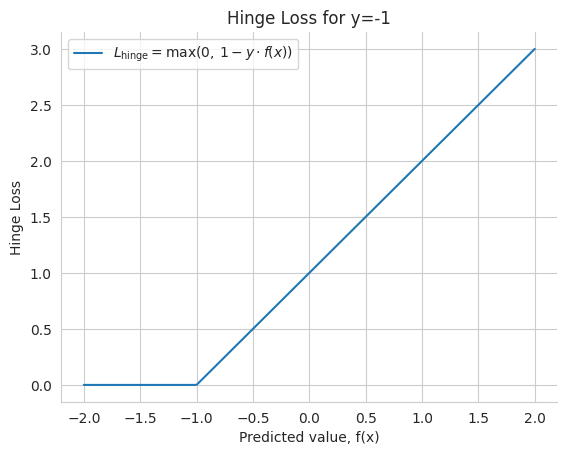

# Fix the true label
y = -1
# Generate a range of predicted values
f_values = np.linspace(-2, 2, 400)
loss_values = hinge_loss_value(y, f_values)
sns.set_style('whitegrid')
plt.plot(f_values, loss_values, label=r'$L_{\text{hinge}} = \max(0,\, 1 - y\cdot f(x))$')
plt.xlabel('Predicted value, f(x)')
plt.ylabel('Hinge Loss')
plt.title(f'Hinge Loss for y={y}')
sns.despine()
plt.legend()
plt.grid(True)
plt.show()

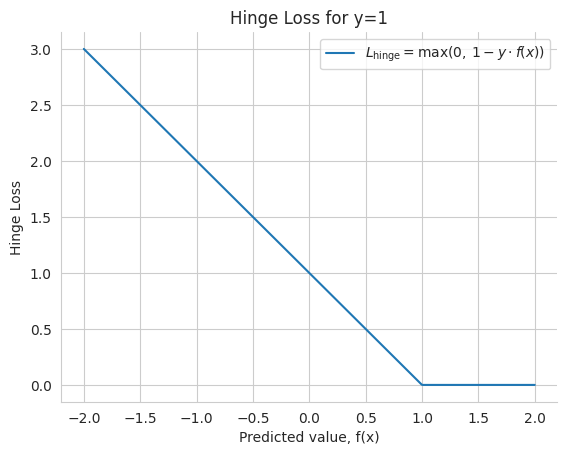

# Fix the true label
y = 1
# Generate a range of predicted values
f_values = np.linspace(-2, 2, 400)
loss_values = hinge_loss_value(y, f_values)
sns.set_style('whitegrid')
plt.plot(f_values, loss_values, label=r'$L_{\text{hinge}} = \max(0,\, 1 - y\cdot f(x))$')
plt.xlabel('Predicted value, f(x)')
plt.ylabel('Hinge Loss')
plt.title(f'Hinge Loss for y={y}')
sns.despine()
plt.legend()
plt.grid(True)
plt.show()
When training an SVM classifier, we will be finding the hinge loss for a batch of values. The hinge loss for a batch of data points is the average of the hinge losses for each individual data point:
def hinge_loss_numpy(y_true, y_pred):
# Ensure y_true and y_pred are numpy arrays of type float
y_true = np.array(y_true, dtype=float)
y_pred = np.array(y_pred, dtype=float)
# Calculate hinge loss for each sample: max(0, 1 - y * f(x))
losses = np.maximum(0, 1 - y_true * y_pred)
# Return the average loss
return np.mean(losses)
# Example usage
y_true = np.array([-1, 1, -1, 1])
y_pred = np.array([0.8, 0.4, -0.5, 1.2])
print("NumPy Hinge Loss:", hinge_loss_numpy(y_true, y_pred))
NumPy Hinge Loss: 0.725
def hinge_loss_numpy_with_losses(y_true, y_pred):
y_true = np.array(y_true, dtype=float)
y_pred = np.array(y_pred, dtype=float)
losses = np.maximum(0, 1 - y_true * y_pred)
return np.mean(losses), losses
y_true = np.array([-1, 1, 1, 1])
y_pred = np.array([0.8, 0.4, -0.5, 1.2])
avg_loss, losses = hinge_loss_numpy_with_losses(y_true, y_pred)
print("Hinge Loss (Average):", avg_loss)

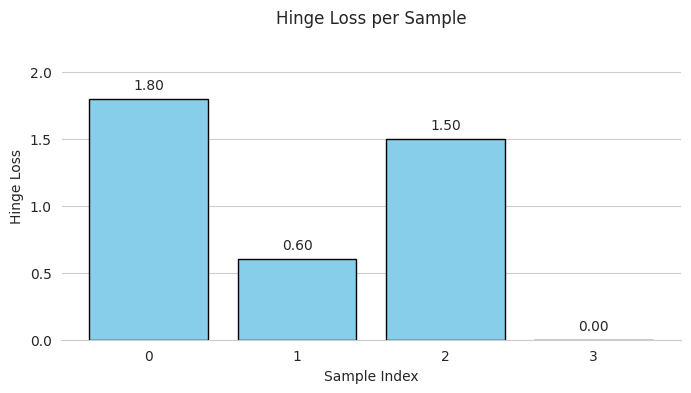

# Bar plot for each sample's loss
plt.figure(figsize=(8, 4))
bars = plt.bar(np.arange(len(losses)), losses, color='skyblue', edgecolor='k')
plt.xlabel("Sample Index")
plt.ylabel("Hinge Loss")
plt.title("Hinge Loss per Sample")
plt.xticks(np.arange(len(losses)))
# Add labels above each bar
for i, bar in enumerate(bars):
height = bar.get_height()
plt.text(bar.get_x() + bar.get_width()/2, height + 0.05, f'{losses[i]:.2f}',
ha='center', va='bottom')
plt.ylim(0, max(losses) + 0.5)
plt.grid(axis='x')
sns.despine()
plt.gca().spines['left'].set_color('white')
plt.show()
Hinge Loss (Average): 0.975
## An interactive widget for exploring hinge loss
import ipywidgets as widgets
from ipywidgets import HBox, VBox, interactive_output, Layout
from IPython.display import display
def interactive_hinge_loss(y0, y1, y2, y3, p0, p1, p2, p3):
# Construct arrays from widget inputs
y_true = np.array([y0, y1, y2, y3])
y_pred = np.array([p0, p1, p2, p3])
# Compute hinge loss
avg_loss, losses = hinge_loss_numpy_with_losses(y_true, y_pred)
print("Hinge Loss (Average):", avg_loss)
# Create bar plot for each sample's loss
plt.figure(figsize=(8, 4))
bars = plt.bar(np.arange(len(losses)), losses, color='skyblue', edgecolor='k')
plt.xlabel("")
plt.ylabel("Hinge Loss")
plt.title("Hinge Loss per Sample")
plt.xticks(np.arange(len(losses)))
# Add text labels above each bar showing the loss value
for i, bar in enumerate(bars):
height = bar.get_height()
plt.text(bar.get_x() + bar.get_width()/2, height + 0.05, f'{losses[i]:.2f}',
ha='center', va='bottom')
plt.ylim(0, 3.5)
plt.grid(axis='x')
sns.despine() # Remove the top and right spines for a cleaner look
plt.gca().spines['left'].set_color('white')
#plt.show()
# Create widgets for each y (dropdown) and each p (slider)
w_y0 = widgets.Dropdown(options=[-1, 1], value=-1, description="y0:")
w_p0 = widgets.FloatSlider(min=-2, max=2, step=0.1, value=0.8, description="p0:")
w_y1 = widgets.Dropdown(options=[-1, 1], value=1, description="y1:")
w_p1 = widgets.FloatSlider(min=-2, max=2, step=0.1, value=0.4, description="p1:")
w_y2 = widgets.Dropdown(options=[-1, 1], value=1, description="y2:")
w_p2 = widgets.FloatSlider(min=-2, max=2, step=0.1, value=-0.5, description="p2:")
w_y3 = widgets.Dropdown(options=[-1, 1], value=1, description="y3:")
w_p3 = widgets.FloatSlider(min=-2, max=2, step=0.1, value=1.2, description="p3:")
# Arrange the widgets into a 4x2 matrix (each row with y and p next to each other)
row0 = HBox([w_y0, w_p0], layout=Layout(margin='0px'))
row1 = HBox([w_y1, w_p1], layout=Layout(margin='0px'))
row2 = HBox([w_y2, w_p2], layout=Layout(margin='0px'))
row3 = HBox([w_y3, w_p3], layout=Layout(margin='0px'))
widget_matrix = VBox([row0, row1, row2, row3], layout=Layout(margin='0px'))
# Create an interactive output that links the widgets to the function
out = interactive_output(interactive_hinge_loss,
{'y0': w_y0, 'p0': w_p0,
'y1': w_y1, 'p1': w_p1,
'y2': w_y2, 'p2': w_p2,
'y3': w_y3, 'p3': w_p3})
# Display the widget matrix and the output together
display(widget_matrix, out)
The keras library provides a built-in Hinge loss function that can be used to train SVM models. This loss function is defined as:
tf.keras.losses.Hinge()
Defining the SVM Classifier in Keras#
There three steps to define and train an SVM classifier in Keras.
Step 1: Define the Model#
import tensorflow as tf
from tensorflow.keras import Input, Sequential
from tensorflow.keras.layers import Dense
X = np.array([
[-1, -1], [-2, -1.5], [-1.5, -2], [-0.75, -2.5], [-3, -1.5], # Class 0
[1, 1], [2.25, 1.5], [1.5, 2], [0.5, 2.5], [1.8, 1.5], # Class 1
])
model = Sequential([
Input(shape=(X.shape[1],)), # Explicitly define the input shape
Dense(1, activation='linear'), # Linear activation for a linear classifier
])
model.summary()
print(model.layers[0].get_weights())
2025-05-08 15:03:59.135189: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-05-08 15:03:59.138325: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-05-08 15:03:59.144843: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:467] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1746716639.155053 46753 cuda_dnn.cc:8579] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1746716639.158131 46753 cuda_blas.cc:1407] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
W0000 00:00:1746716639.169302 46753 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716639.169314 46753 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716639.169316 46753 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716639.169317 46753 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
2025-05-08 15:03:59.173445: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2025-05-08 15:04:00.778246: E external/local_xla/xla/stream_executor/cuda/cuda_platform.cc:51] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
Model: "sequential"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓ ┃ Layer (type) ┃ Output Shape ┃ Param # ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩ │ dense (Dense) │ (None, 1) │ 3 │ └─────────────────────────────────┴────────────────────────┴───────────────┘
Total params: 3 (12.00 B)
Trainable params: 3 (12.00 B)
Non-trainable params: 0 (0.00 B)
[array([[-0.4476238 ],
[-0.07040238]], dtype=float32), array([0.], dtype=float32)]
Step 2: Compile the Model#
You must specify the loss function (we will use the built-in hinge loss function) and an optimizer that updates the weights based on the loss (more on this later).
Optionally, you can also specify additional metrics to track during training. For example, including ‘accuracy’ means that after each training epoch, Keras will calculate the percentage of predictions that match the true labels. This extra feedback helps you understand how well your model is performing and can guide decisions such as adjusting hyperparameters, selecting the best model, or diagnosing issues during training.
model.compile(
loss=tf.keras.losses.Hinge(),
optimizer=tf.keras.optimizers.SGD(learning_rate=0.01)
)
Step 3: Train the Model#
Training the model involves feeding the training data (features and labels) into the model and adjusting the weights to minimize the loss. The fit method in Keras is used to train the model. You must specify the training data, the number of epochs (iterations over the entire dataset), and the batch size (the number of samples used in each iteration).
X1 = np.array([
[-1, -1], [-2, -1.5], [-1.5, -2], [-0.75, -2.5], [-3, -1.5], # Class 0
[1, 1], [2.25, 1.5], [1.5, 2], [0.5, 2.5], [1.8, 1.5] # Class 1
])
y1 = np.array([-1, -1, -1, -1,-1, 1, 1, 1, 1, 1]) # Labels
def build_model(input_dim):
m = Sequential([
Input(shape=(input_dim,)),
Dense(1, activation='linear')
])
m.compile(
loss=tf.keras.losses.Hinge(),
optimizer=tf.keras.optimizers.SGD(learning_rate=0.01)
)
return m
# Each time you want to start fresh:
model2 = build_model(X1.shape[1])
# Train the model
history = model2.fit(X1, y1, epochs=100, batch_size = 2, verbose=0)
print("Training complete")

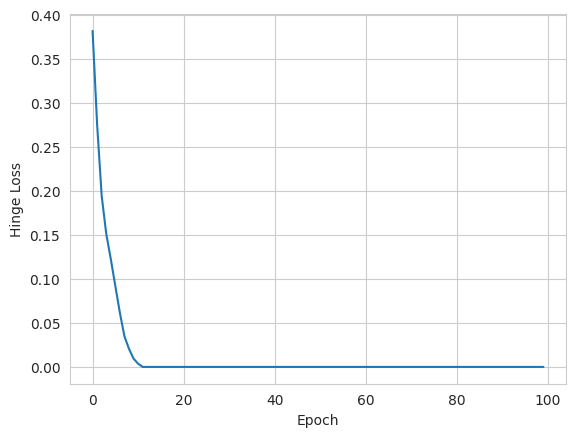

# # Plot the loss over epochs
plt.plot(history.history['loss'])
plt.xlabel("Epoch")
plt.ylabel("Hinge Loss");
Training complete
Make Predictions using the Model#
predictions = model2.predict(X1).flatten()
print(predictions)
# Convert raw scores to class labels: if prediction >= 0, then class 1, else -1
predicted_labels = np.where(predictions >= 0, 1, -1)
print("Predictions:", predicted_labels)
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 20ms/step
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 30ms/step
[-1.0158713 -1.9291478 -1.6489017 -1.1697352 -2.7248294 1.0458713
2.1580684 1.6789017 1.0008148 1.8000113]
Predictions: [-1 -1 -1 -1 -1 1 1 1 1 1]
def train_svm(X, y, epochs, batch_size):
"""
Build and train an SVM-like linear classifier using hinge loss.
Parameters:
X: NumPy array of input features (shape: (n_samples, n_features))
y: NumPy array of labels (should be -1 and 1)
epochs: Number of training epochs.
batch_size: Batch size for training.
Returns:
predictor: A function that makes predictions on new data.
w: Learned weight matrix from the Dense layer.
b: Learned bias vector from the Dense layer.
"""
# Build the model
model = Sequential([
Input(shape=(X.shape[1],)), # Explicitly define input shape
Dense(1, activation='linear') # Single neuron (linear output)
])
# Compile the model using hinge loss and SGD optimizer
model.compile(
loss=tf.keras.losses.Hinge(),
optimizer=tf.keras.optimizers.SGD(learning_rate=0.01)
)
# Train the model
model.fit(X, y, epochs=epochs, batch_size=batch_size, verbose=0)
# Extract the learned weights and bias from the Dense layer.
# (If using an Input layer, the Dense layer is typically the last layer.)
w, b = model.layers[-1].get_weights()
# Define a predictor function that mirrors your perceptron example:
def predictor(X_new):
# Compute the raw scores: f(x) = X_new.dot(w) + b.
# Note: Ensure that X_new is a NumPy array.
scores = np.dot(X_new, w) + b
# Return class predictions: if score >= 0 then 1, else -1.
return (scores >= 0).astype(int)
return predictor, w.reshape(2), b
X1 = np.array([
[-1, -1], [-2, -1.5], [-1.5, -2], [-0.75, -2.5], [-3, -1.5], # Class 0
[1, 1], [2.25, 1.5], [1.5, 2], [0.5, 2.5], [1.8, 1.5] # Class 1
])
y1 = np.array([-1, -1, -1, -1, -1, 1, 1, 1, 1, 1]) # Labels
model_svm, best_w_svm, best_b_svm = train_svm(X1, y1, epochs=500, batch_size=5)

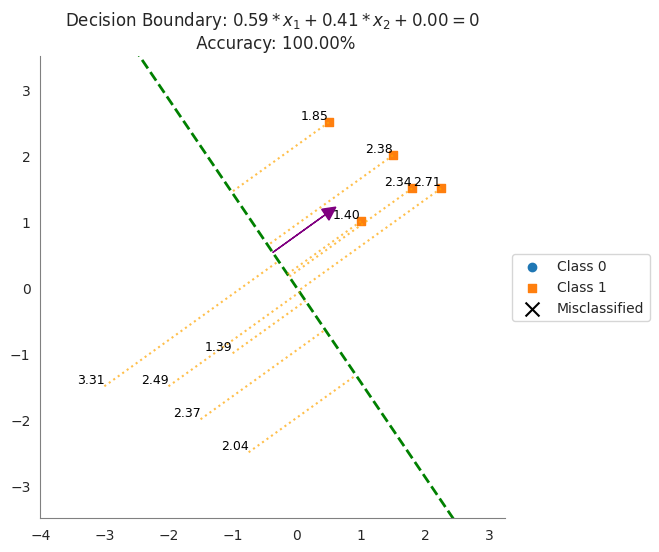

plot_with_boundary_and_margin(X1, y1, best_w_svm, best_b_svm[0])
