Example: Classifying Digits#
This is in the initial example discussed in the book “Deep Learning with Python” by François Chollet.
The MNIST dataset is a set of handwritten digits. It has a training set of 60,000 examples, and a test set of 10,000 examples. The digits have been size-normalized and centered in a fixed-size image.
Step 1: Load the data#
from tensorflow.keras.datasets import mnist
(train_images, train_labels), (test_images, test_labels) = mnist.load_data()
2025-05-08 15:02:19.494154: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-05-08 15:02:19.497426: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-05-08 15:02:19.506078: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:467] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1746716539.520347 43194 cuda_dnn.cc:8579] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1746716539.524444 43194 cuda_blas.cc:1407] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
W0000 00:00:1746716539.535824 43194 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716539.535834 43194 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716539.535836 43194 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
W0000 00:00:1746716539.535837 43194 computation_placer.cc:177] computation placer already registered. Please check linkage and avoid linking the same target more than once.
2025-05-08 15:02:19.539736: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz
0/11490434 ━━━━━━━━━━━━━━━━━━━━ 0s 0s/step
1982464/11490434 ━━━━━━━━━━━━━━━━━━━━ 0s 0us/step
8413184/11490434 ━━━━━━━━━━━━━━━━━━━━ 0s 0us/step
11490434/11490434 ━━━━━━━━━━━━━━━━━━━━ 0s 0us/step
train_data and test_data: lists of images of handwritten digits.
train_labels and test_labels: The label associated with an example is the digit 0-9.
digit_idx = 0
print(train_images[digit_idx])
print(train_labels[digit_idx])
[[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 3 18 18 18 126 136
175 26 166 255 247 127 0 0 0 0]
[ 0 0 0 0 0 0 0 0 30 36 94 154 170 253 253 253 253 253
225 172 253 242 195 64 0 0 0 0]
[ 0 0 0 0 0 0 0 49 238 253 253 253 253 253 253 253 253 251
93 82 82 56 39 0 0 0 0 0]
[ 0 0 0 0 0 0 0 18 219 253 253 253 253 253 198 182 247 241
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 80 156 107 253 253 205 11 0 43 154
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 14 1 154 253 90 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 139 253 190 2 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 11 190 253 70 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 35 241 225 160 108 1
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 81 240 253 253 119
25 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 45 186 253 253
150 27 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 16 93 252
253 187 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 249
253 249 64 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 46 130 183 253
253 207 2 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 39 148 229 253 253 253
250 182 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 24 114 221 253 253 253 253 201
78 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 23 66 213 253 253 253 253 198 81 2
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 18 171 219 253 253 253 253 195 80 9 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 55 172 226 253 253 253 253 244 133 11 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 136 253 253 253 212 135 132 16 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]]
5
# display images
import matplotlib.pyplot as plt
import numpy as np
def display_image(image):
plt.imshow(np.reshape(image, (28,28)), cmap='gray')
plt.axis('off')
plt.show()

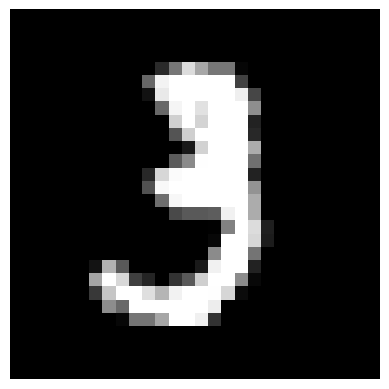

digit_idx = 10
display_image(train_images[digit_idx])
print(f"The label is {train_labels[digit_idx]}")
The label is 3
Step 2: Preprocess the data#
We reshape the data into the shape that the network expects, and scale it so that all values are in the [0, 1] interval.
Reshaping flattens images so they can be inputted to standard neural networks.
Normalizing converts pixel values from
[0,255]to[0,1]to aid neural network training.Converting to
float32ensures the model works with precise fractional numbers.
train_images = train_images.reshape((60000, 28*28))
train_images = train_images.astype('float32') / 255
test_images = test_images.reshape((10000, 28*28))
test_images = test_images.astype('float32') / 255
print(len(train_images[0]))
784
Define the Model#
sparse_categorical_crossentropy is a loss function used for multi-class classification problems when the labels are integers rather than one-hot vectors.
It’s essentially identical to categorical_crossentropy, except it simplifies label handling by not requiring explicit one-hot encoding.
from tensorflow import keras
from tensorflow.keras.layers import Dense
model = keras.Sequential([
Dense(64, activation='relu'),
Dense(256, activation='relu'),
Dense(10, activation='softmax')
])
model.compile(
optimizer='rmsprop',
loss = 'sparse_categorical_crossentropy',
metrics=["accuracy"])
2025-05-08 15:02:22.491998: E external/local_xla/xla/stream_executor/cuda/cuda_platform.cc:51] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
Step 4: Train the model#
We will train the model for 20 epochs in mini-batches of 512 samples.
history = model.fit(train_images, train_labels, epochs=10, batch_size=128, verbose=0)

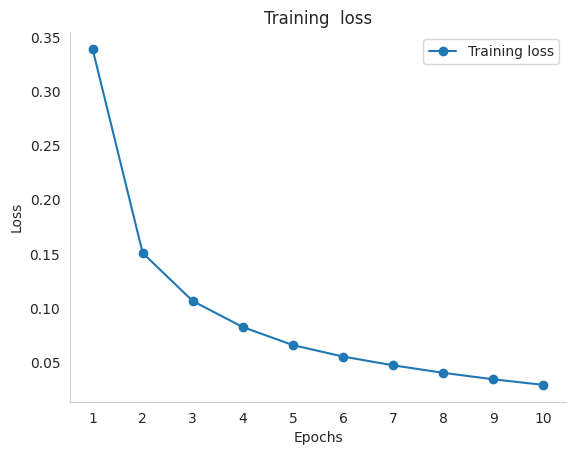

import matplotlib.pyplot as plt
import seaborn as sns
sns.set_style("whitegrid")
history_dict = history.history
loss_values = history_dict["loss"]
epochs = range(1, len(loss_values) + 1)
plt.plot(epochs, loss_values, "o-", label="Training loss")
plt.title("Training loss")
plt.xticks(epochs)
plt.xlabel("Epochs")
plt.ylabel("Loss")
plt.legend()
sns.despine()
plt.grid(False)
plt.show()

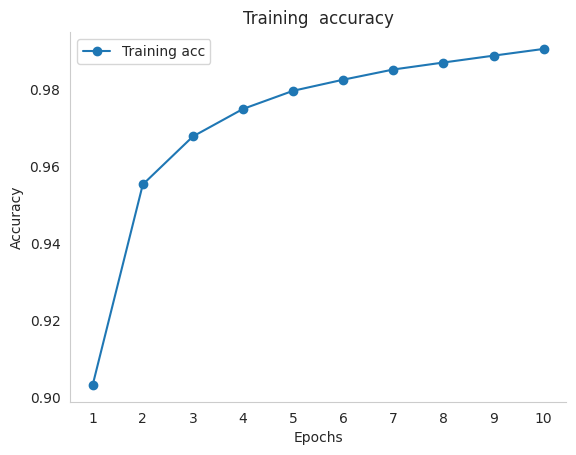

acc = history_dict["accuracy"]
epochs = range(1, len(loss_values) + 1)
plt.plot(epochs, acc, "o-", label="Training acc")
plt.title("Training accuracy")
plt.xticks(epochs)
plt.xlabel("Epochs")
plt.ylabel("Accuracy")
plt.legend()
sns.despine()
plt.grid(False)
plt.show()
results = model.evaluate(test_images, test_labels)
print(f"The test loss is {results[0]}")
print(f"The test accuracy is {results[1]}")
print("The predictions are:")
predictions = model.predict(test_images)
print(predictions)
1/313 ━━━━━━━━━━━━━━━━━━━━ 27s 90ms/step - accuracy: 1.0000 - loss: 0.0101
53/313 ━━━━━━━━━━━━━━━━━━━━ 0s 967us/step - accuracy: 0.9772 - loss: 0.0797
108/313 ━━━━━━━━━━━━━━━━━━━━ 0s 943us/step - accuracy: 0.9735 - loss: 0.0987
163/313 ━━━━━━━━━━━━━━━━━━━━ 0s 933us/step - accuracy: 0.9724 - loss: 0.1024
219/313 ━━━━━━━━━━━━━━━━━━━━ 0s 926us/step - accuracy: 0.9726 - loss: 0.1016
274/313 ━━━━━━━━━━━━━━━━━━━━ 0s 925us/step - accuracy: 0.9734 - loss: 0.0985
313/313 ━━━━━━━━━━━━━━━━━━━━ 0s 962us/step - accuracy: 0.9740 - loss: 0.0962
The test loss is 0.08320607244968414
The test accuracy is 0.9775999784469604
The predictions are:
1/313 ━━━━━━━━━━━━━━━━━━━━ 9s 30ms/step
82/313 ━━━━━━━━━━━━━━━━━━━━ 0s 619us/step
166/313 ━━━━━━━━━━━━━━━━━━━━ 0s 610us/step
245/313 ━━━━━━━━━━━━━━━━━━━━ 0s 619us/step
313/313 ━━━━━━━━━━━━━━━━━━━━ 0s 680us/step
313/313 ━━━━━━━━━━━━━━━━━━━━ 0s 712us/step
[[4.6618698e-12 5.4504061e-11 6.9359729e-08 ... 9.9999982e-01
3.0681863e-10 3.1769345e-10]
[3.6057573e-14 3.7328530e-07 9.9999958e-01 ... 3.5972413e-13
3.9626080e-09 3.3924853e-19]
[1.8018078e-08 9.9956882e-01 2.5045214e-05 ... 4.6468926e-05
3.5494170e-04 9.1214609e-08]
...
[3.6129566e-16 1.5118119e-12 4.7771649e-14 ... 1.0168957e-07
5.1780430e-10 1.1110571e-05]
[3.7461545e-09 4.9541122e-12 4.2986995e-13 ... 1.2946375e-11
7.1850550e-06 1.8296942e-12]
[4.5440652e-12 8.8377114e-14 5.1600729e-12 ... 2.6945746e-17
7.1381329e-13 3.6100231e-15]]
